»KSE 680« disc chain harrow, hydraulically adjustable
PRODUKTINFOS
direkt auf's Handy
The hydraulically adjustable chain disc harrow is the perfect solution for particularly demanding operations. Thanks to the heavy chains with adjustable angle of attack, the field can be worked even more flexibly. The working aggressiveness is between 51° to 58°.
Technical details:
- Hydraulically foldable
- Three-point linkage cat. 2 and cat. 3
- Working width: approx. 6800 mm
- Total length: 10800 mm
- Wear-resistant steel discs – Disc spacing: 130 mm
- Disc diameter: 350 mm
- Discs individually replaceable
- Incl. brake axle and compressed air system
- Flexible segment units: 120 kg/m (standard) 148 kg/m (optional)
- Weight per weighting disc: approx. 2.7 kg
- 3 double-acting connections required as standard
- With optional control block only 1 double-acting connection required or connection to load-sensing for rigid version (already included with hydraulic adjustment)
- Weight: approx. 5580 kg
Features:
- Low wear
- Extreme area performance: up to approx. 12 ha/h
- Recommended working speed: approx. 10 – 18 km/h
- Transport speed: 30 km/h
- Seasonal applications: Corn stubble cultivation; corn borer and weed control; stubble uprooting; seedbed preparation; incorporation of slurry, catch crops and biomass.
- Corn stubble is cleanly uprooted and slit open
Intercrop seeding easily via pneumatic spreader in one pass - Low fuel consumption
- Hydraulic chain tensioning
- Aggressive angle of attack
Accessories:

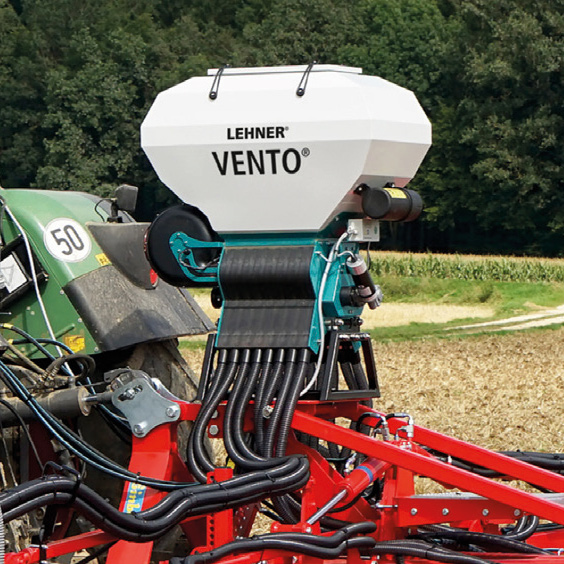

- Pneumatic spreader »VENTO II«
