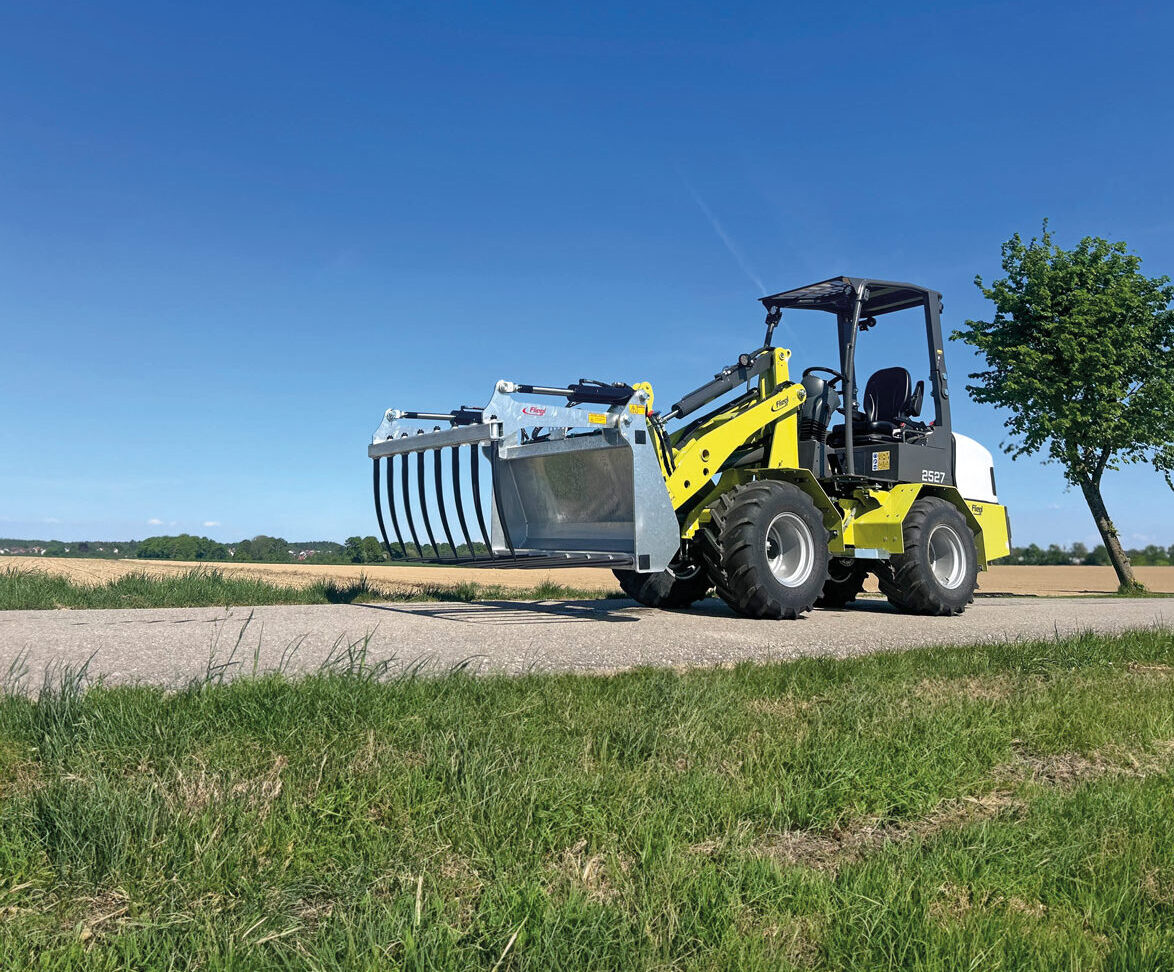

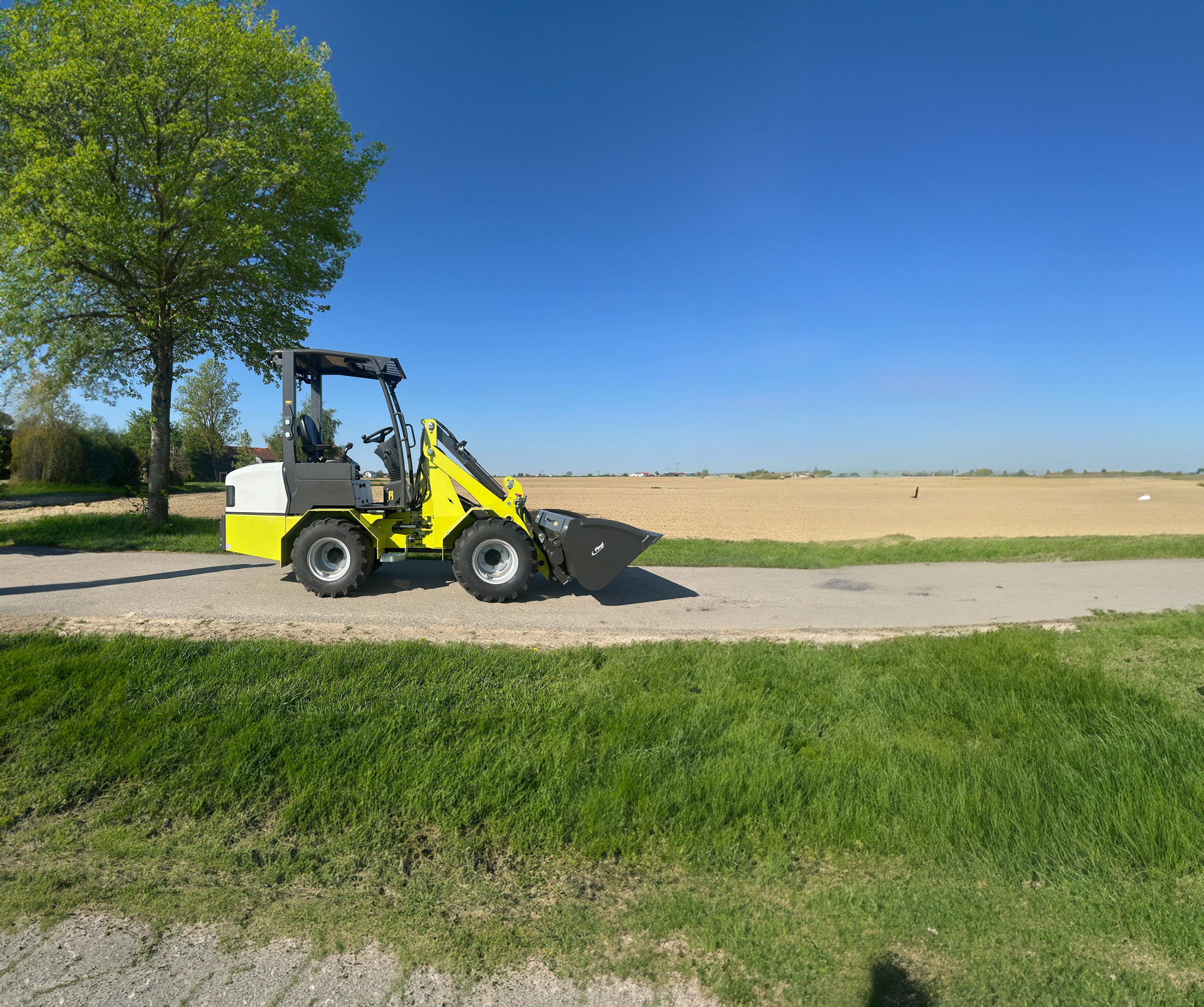

Farm loader »Fliegl 2527«

Our farm loader impresses with its great performance in a small space. With Euronorm mounting.

PRODUCT INFO
directly to your mobile phone

Standard equipment:

Cabin suspension
Pressure-free return
5 headlights mounted on the loader (1 headlight on the boom for best view of the attachment, 4 headlights on the cab)
Euronorm mounting with hydraulic quick coupler
Front and rear fender flare kit

Highlights:

Made in Germany
Quick and easy commissioning of the machine
High breakout force
All components renowned manufacturers
Low centre of gravity of the engine ensures high stability
Very maintenance-friendly: cabin and bonnet are easy to tilt or open
Planetary axes in the drive train with optional 100% lock
Good visibility of the top of the attachment holder

Drive:

Type: hydrostatic all-wheel drive
Transmission: Automatic control
Differential: Limited silo (LS)
Final drive: 8-tonne planetary axles
Tractive force: 21,500 N
Drive: 8 t axles (Comer F068)
Traction hydraulics: 111 l/min. (350 bar)
Working hydraulics: 51 l/min. (190 bar)
Parking brake: drum brake

Type:

Operating weight: 2500 kg
Lifting capacity: 1850 kg
Tipping load: 2000 kg

Engine:

Engine: Yanmar – 3TNV88C-DYEM (stage V)
Cylinders: 3
Engine output: 37 hp / 27 kW
Type: Diesel with DPF
Fuel tank capacity: 44 l
Hydraulic tank capacity: 38 l

Dimensions and speed:

Lift height: 2900 mm
Clearance height: 2450 mm
Width with standard wheels: 1136 mm
Standard Wheels: 31×15 5-15
Driving speed, low: 0 – 8 km/h
Driving speed, high: 0 – 20 km/h

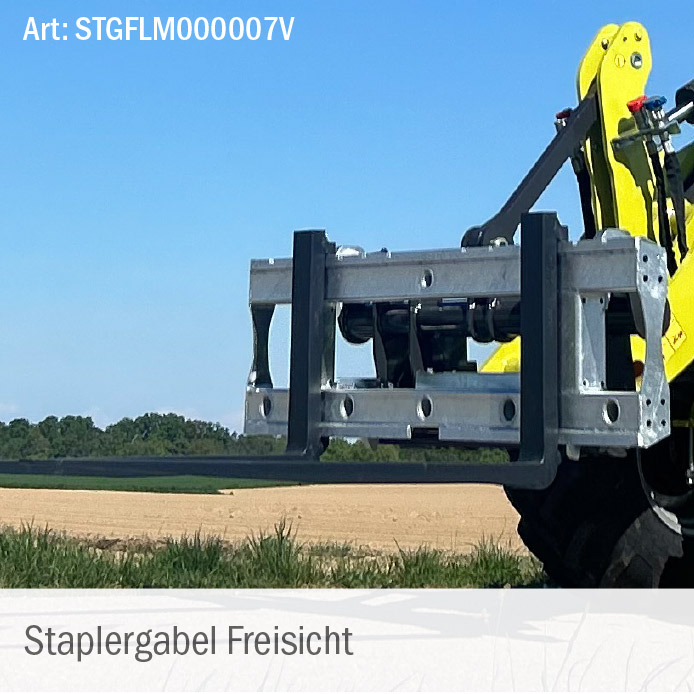

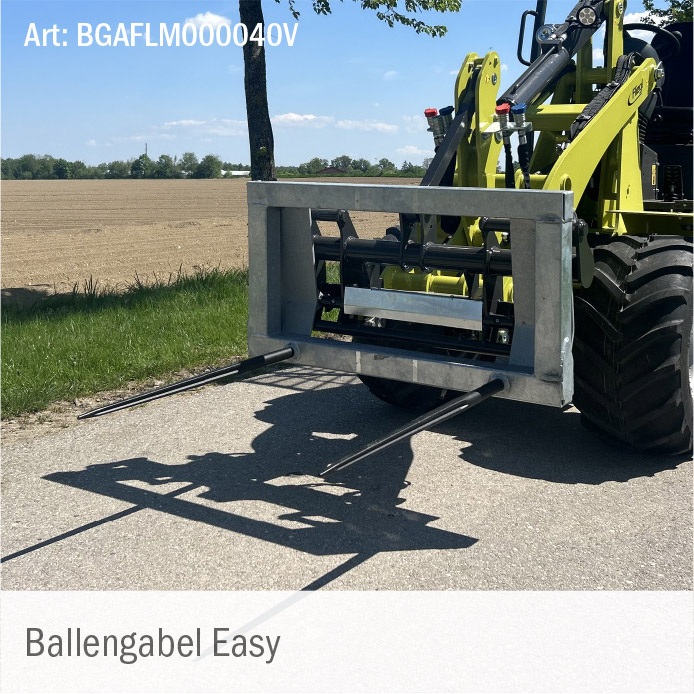

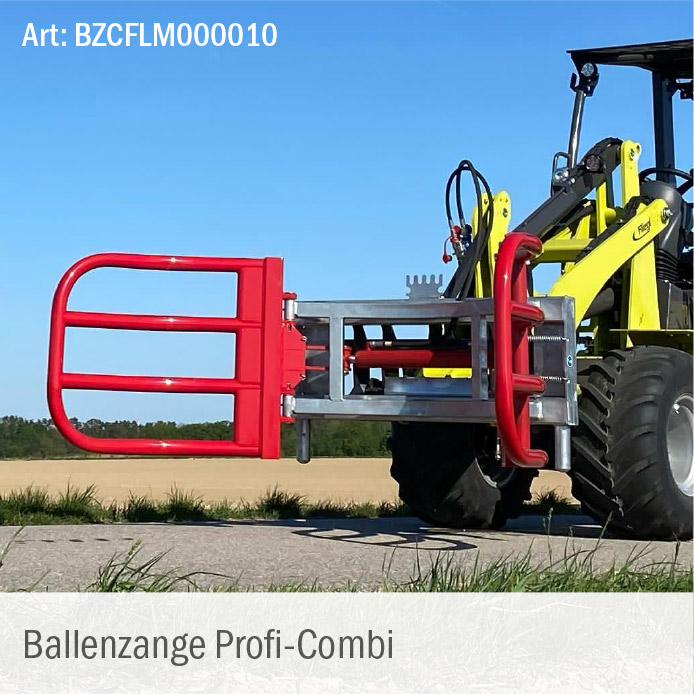

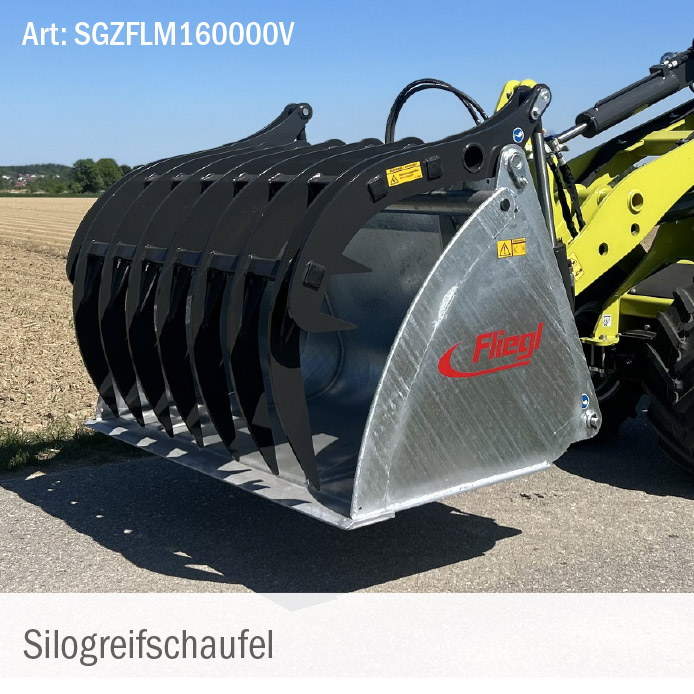

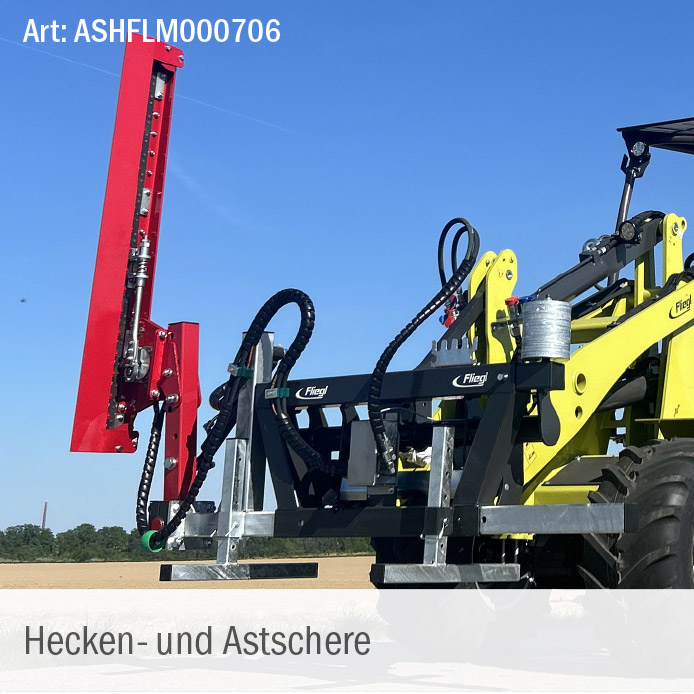

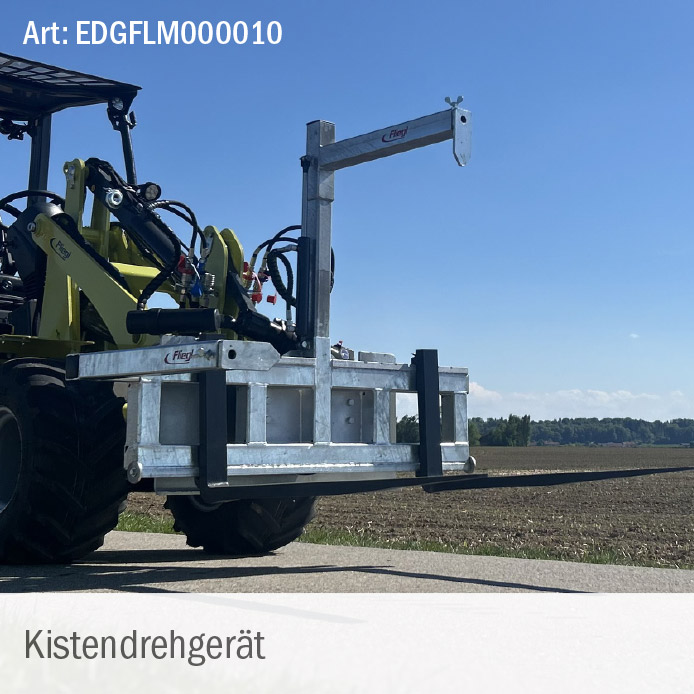

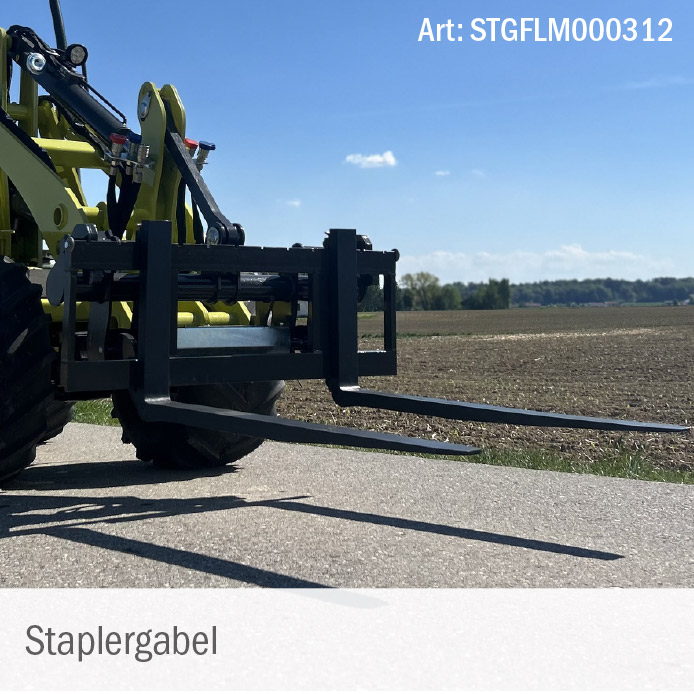

Compatible attachments

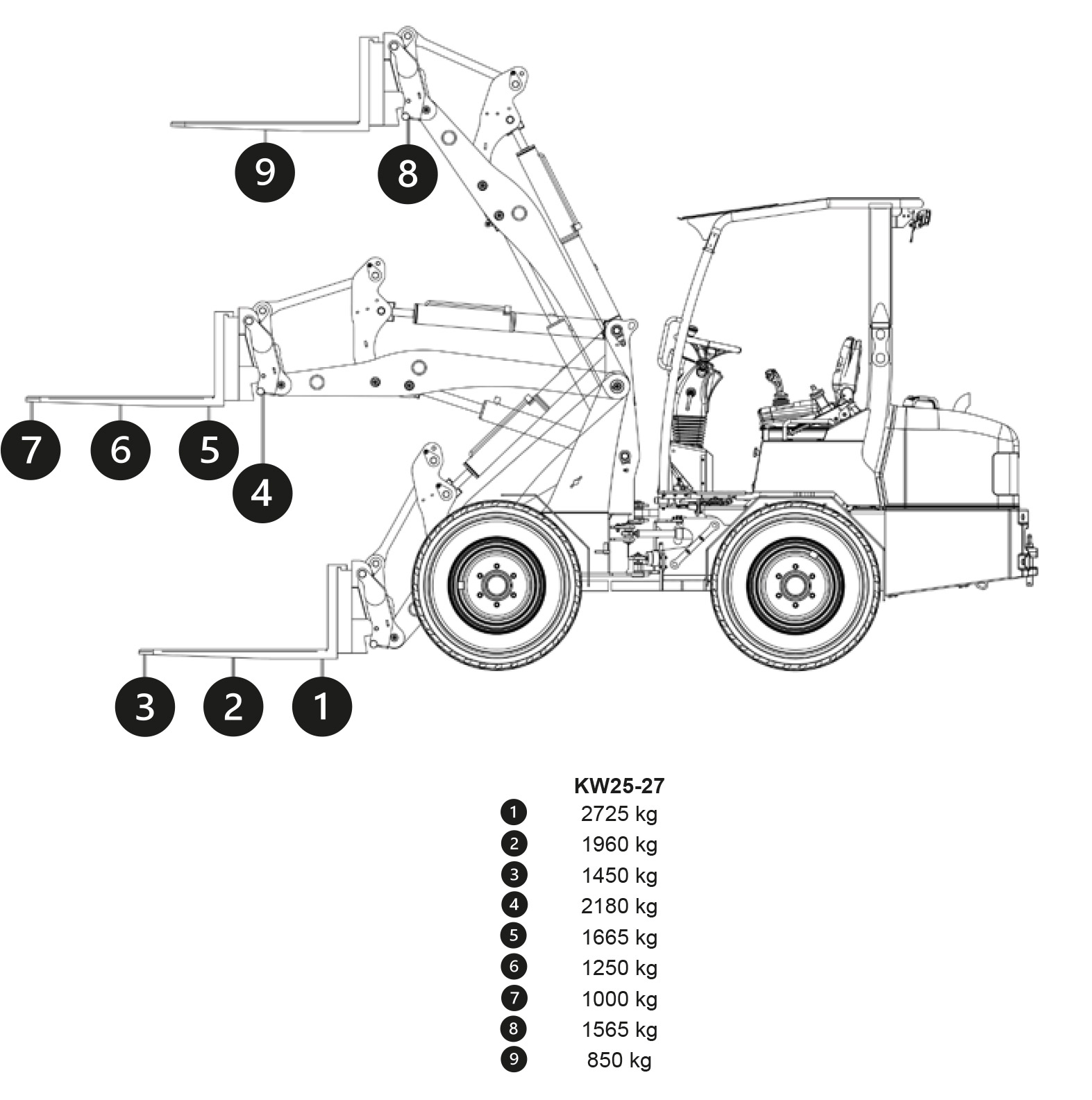

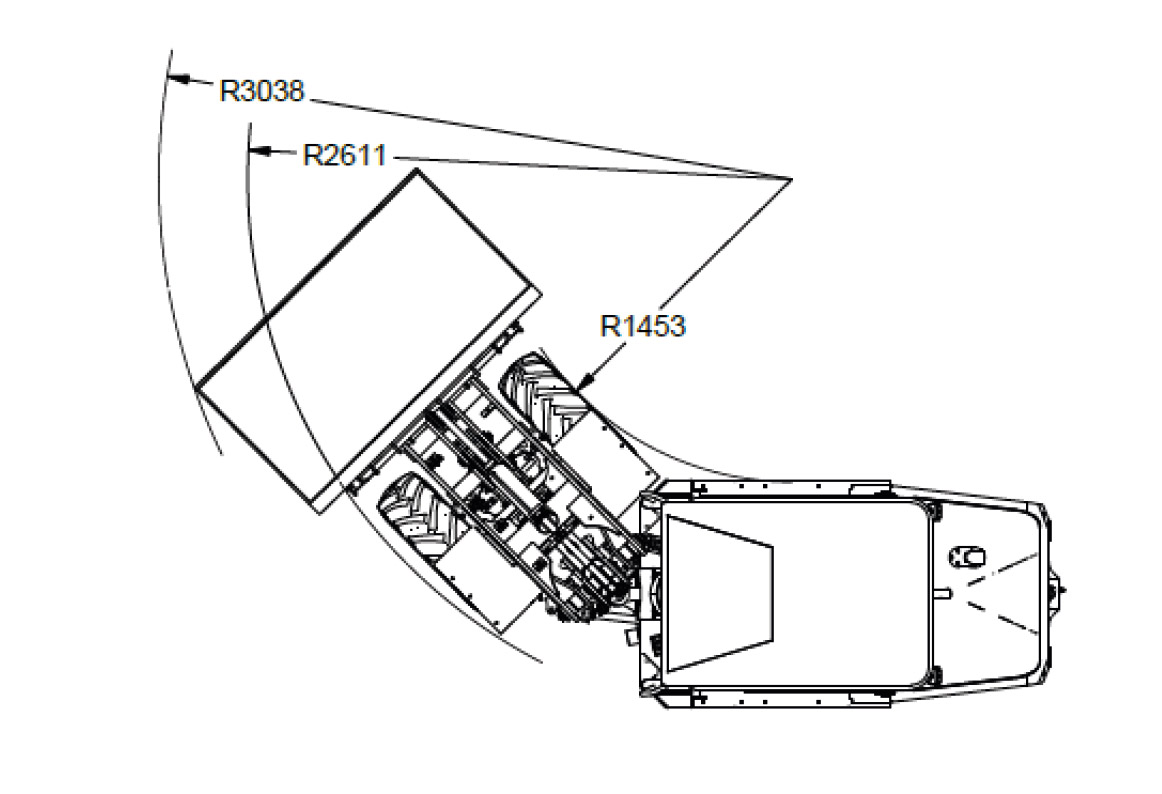

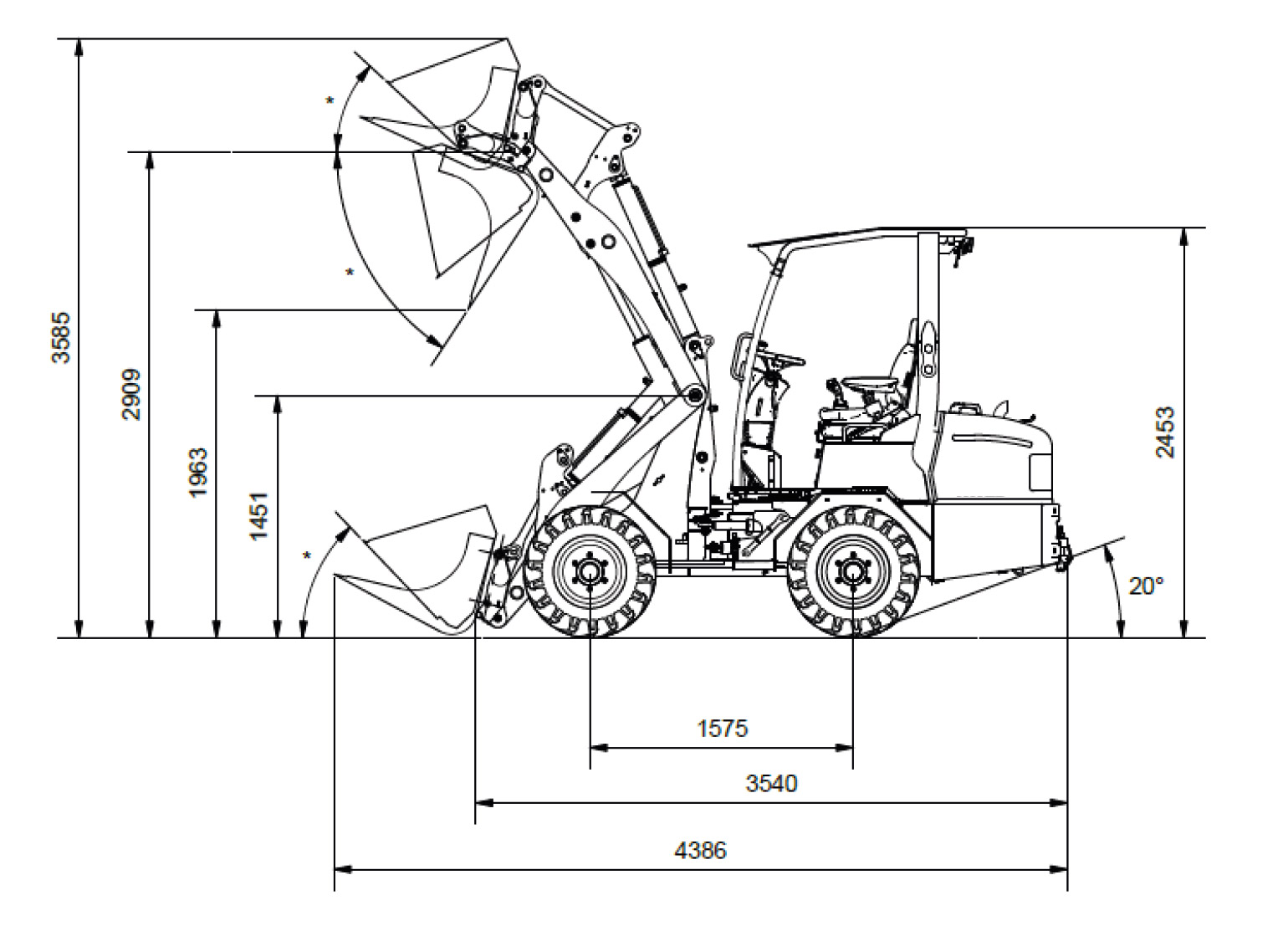

Details sketches
